Gear hobs are simple but vital tools used in the gear manufacturing process. They are used to form gear teeth with incredible accuracy. Gear hobs play a vital role in gear manufacturing. They are used in almost all types of gear manufacturing machines. It would be harder and slower to manufacture good, quality gears without them.
Gears appear in the majority of tools and machines. From clocks to cars, gears enable smooth motion. Gear hobs help create durable gears that match perfectly. This makes machines run smoother and more quietly.

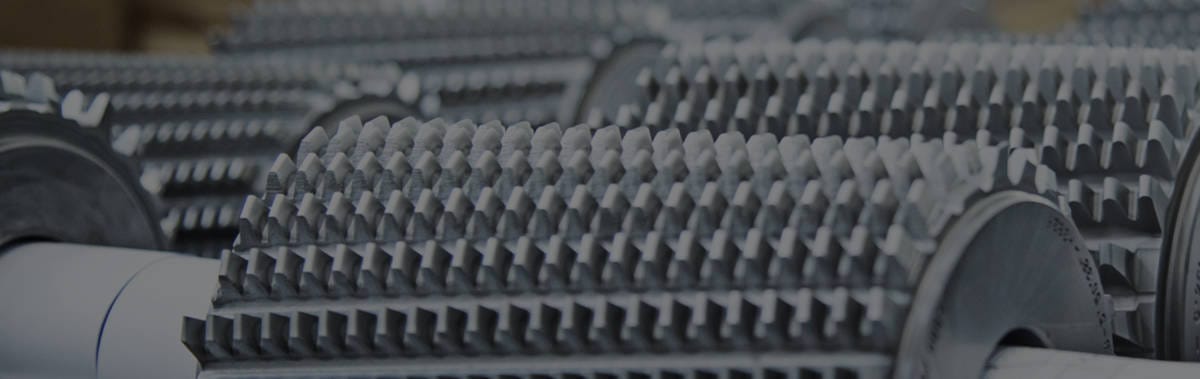

What is a Gear Hob
A gear hob is a cutting tool used to create gear teeth. It is very similar to a milling cutter, except that the gear hob has teeth on the cutting edge. The hob will be turning when cutting into a gear blank. As it turns, it will remove the gear teeth. This is what gives gears their complete shape and size. Gear hobs can be used on materials, including metals, plastics, and composites.
Hobs come in a variety of sizes. They are all intended to work with different gear types or sizes. The hob teeth are designed to precisely replicate the gear teeth shape. This ensures that the cutting will not get dirty and imprecise.
How Gear Hobbing Works
Gear hobbing is a method for cutting the gear teeth with the assistance of a revolving hob. The hob and gear blank also revolve. Their speeds are set appropriately according to the number of teeth needed. The hob is gradually moved into the gear blank slowly. As it cuts, one by one the gear teeth are formed. It’s a quick and accurate process. It is widely utilized for making spur, helical, worm, and spline gears.
This process is time-saving. A single machine can produce hundreds of identical gears without interruption. Gear hobbing also provides more control over tooth form. It provides a smooth finish, which assists gears in running smoothly and longer.
Types of Gear Hobs
There are numerous types of gear hobs. Each of them is made for a special goal. Some are used for simple gear cutting. Others are created for more precise work. Let us talk about the most common types:
Single-Thread vs Multi-Thread Hobs
Single-thread hobs produce a tooth at a time. They are time-consuming but precise. Use them when you need precise details. Multi-thread hobs produce more than one tooth at the same time. They are faster. But they might not be so precise unless you handle them with utmost care.
Multi-thread hobs are suitable for large orders. They reduce production time. Single-thread hobs are used for precision work.
Straight vs Helical Hobs
Straight hobs have straight teeth along the hob. They cut plain spur gears. Helical hobs have skewed teeth. They are used to make helical gears. Helical hobs help in cutting more contact and smoother running gears.
Helical gears make movement smoother and withstand less wear. That is why they are used in cars and equipment that need smooth motion. Straight gears are easier to make and used in uncomplicated machinery.
Involute Gear Hobs
These hobs are in the shape of gear tooth curves which are curved. These are the most utilized hobs iin gear manufacturing. They give accurate tooth shapes. These are used to make most standard gears.
Involute gears have a tooth form which is curved. They can roll over each other smoothly due to this. The shape also distributes the load, reducing wear.
Worm Gear Hobs
Worm gear hobs are used to produce worm wheels. These are special gears and work at right angles. The shape is produced to suit the worm thread. These generally work in space-constrained machines.
Worm gears deliver high torque in small spaces. They are applied in lifts, conveyors, and gearboxes. Their design also does not allow the gear to rotate in the opposite direction, which is advantageous in tools.
Spline Hobs
Spline hobs are used to form internal and external splines. Splines resemble ridges on a shaft, which are used to connect parts. Spline hobs provide proper fitting and even distribution of the load.
Splines are used in all types of machines. Splines enable power transmission from two different parts. A proper spline offers secure fitting and smooth rotation.
Rack Hob
Rack hobs are used to cut racks, which are straight gears with infinite diameters. A rack hob has cutting teeth that are parallel to the hob’s axis and are used to generate straight rack teeth during gear hobbing.
Double Helical Gear Hob (Herringbone Gear Hob)
Double helical gear hobs are used to cut double helical gears. These are also known as Herringbone gears as the profile matches the profile of a fish bone. These gears have two sets of helical teeth with opposite helix angles.
Each type of gear hob is carefully designed to cut gears with specific tooth profiles, angles, and shapes. The versatility of gear hobs allows for the efficient and precise production of a wide range of gear manufacturing.
Types of Gear hobbing machines
The gear hobbing machines can be broadly classified into two categories:
- Horizontal type: The tool is mounted on the horizontal axis while the workpiece is mounted vertically.
- Vertical type: The hobbing head is mounted on the vertical axis whereas the workpiece is on the horizontal axis.
Other gear manufacturing processes
As already discussed Gear hobbing has limitations in producing certain types of gears. When it comes to different gear-forming processes, you can select from the below sets:
- Gear shaping: A formalized cutting tool is used to cut the shape of gear teeth
- Milling: A miller cutter on the arbor is used to give a profile of the gear teeth
- Grinding: Grinding tool is used to grind the gear teeth and impart proper dimensions and surface finish
Gear Materials and Coatings
Gear hobs are made of resilient metals. High-speed steel (HSS) is common. It stays sharp for a long time and can tolerate heat. Carbide hobs are applied on certain hobs. They last longer but at an increased cost. Wear is minimized with coatings. Titanium nitride or TiN is a common coating (used for enhancing the life of the hob and cutting more smoothly).
Some hobs are coated with special coatings like TiAlN or CrN. These help in high-speed cutting. Coated hobs also have lower oil consumption and run at lower temperatures. This decreases the possibility of tool damage.
Applications of Gear Hobs
Gear hobs are used in many places. Gear hobs are found in car manufacturers, airplane manufactories, and machine shops. From small handheld instruments to large machines, gear hobs make parts work smoothly.
Even in robots and windmills, there is a need for gears. That makes the gear hob usable across many industries. Wherever there is motion, chances are, a gear hob helped make the piece.
Advantages of Gear Hobs
- High Precision: Gear hobbing is known for its exceptional precision, resulting in gears with accurate tooth profiles and spacing. This precision ensures smooth and efficient gear engagement, reducing noise and wear.
- Cost-Effective: Gear hobbing is a cost-effective mass production method, as it allows for the simultaneous cutting of multiple gear teeth during each revolution of the workpiece. This leads to shorter production times and lower per-unit costs.
- Versatility: Gear hobbing machines can produce a wide range of gears, including spur gears, helical gears, worm gears, and splines, making the process highly versatile to meet various industry needs.
- Improved Surface Finish: The hobbing process typically results in excellent surface finishes on the gear teeth, reducing the need for additional finishing operations.
- There are multiple applications of this concept: another great benefit of the utilization of the concept of gear hobbing is that it can be used for a variety of other gears as well, for example, helical gears, spur gears, splines, ratchets, and various other available options as long as people have right kind of tool with them.
- The related processes can also be easily performed: Another benefit of considering the process of gear hobbing is that internal and other related processes, for example, shaping can also be easily performed with this.
Disadvantages of gear hobbing
- Limited to Certain Gear Types: Gear hobbing works fine with straight or helical teeth. However, when it comes to machine internal gears, bevel gears with complex geometries, or gears with non-standard tooth profiles, hobbing is not preferred. For such gears, alternative manufacturing processes like gear shaping or grinding may be more suitable.
- High Tooling Costs: Gear hobbing requires specialized carbide or HSS cutting tools. The cost of these tools can be a significant investment.
- Material Limitations: Gear hobbing is most effective for cutting gears from relatively soft materials, such as steel, aluminum, or brass. Machining harder materials or heat-treated gears with traditional gear hobs can lead to increased tool wear and reduced tool life.
How to Select the Proper Gear Hob
The proper gear hob selection is job-specific. Some of these are to consider:
- Gear Type: Use a hob that resembles the gear to be machined.
- Material: Use hobs with strong metals like HSS or carbide.
- Size: The hob size should resemble the gear blank size.
- Coating: Use a hob whose coating is suitable to your cutting speed and material.
- Thread Type: Use single or multi-thread based on your speed or accuracy needs.
Also, check the pitch tolerance and tool life. For long runs, carbide-coated hob is appropriate. For short runs, HSS is appropriate and less expensive.
In case of doubt, check the machine handbook or ask a tool expert. Make sure you check for quality marks and tool specifications before purchase.
Maintenance and Storage Tips
Gear hobs should be kept in good condition. Clean them after each use. Metal dust and oil must be wiped off. Store them in dry areas to avoid rust. Keep them in the right holders or boxes so that they don’t get damaged. Check them from time to time for dullness. Sharpen them if needed. A well-cared-for hob lasts longer and works better.
Always label every hob by size and type. That makes it easy to choose the correct one later. Never drop or handle a hob with carelessness. Even slight damage affects the gear shape.
Before using a hob, inspect it under good lighting. Look for cracks or edges that are frayed. Those indicators signal it’s time for a replacement or repair.
Common Mistakes to Avoid
Some of the errors will ruin your hob or demolish the gear. Avoid them:
- Using the wrong hob for the gear type
- Failure to use the right speed and feed rate
- Cutting up without proper alignment
- Reusing worn hobs
- Failure to clean the hob upon completion
- Failing to check tool runout
- A wobbly hob makes teeth irregularly shaped
- Also, do not overladen the machine. It leads to tool breakage and inferior gear shape
The lack of constant maintenance is another common issue. This leads to lessened tool life and compromised gear finish.
Future Trends in Gear Hobbing
Gear hobbing is improving with improved tools and new machines. New CNC machines now control gear cutting to a very high accuracy. Computer tools help plan the cutting operation. Gear hobs are also getting better coatings. These enhance their cutting speed and longevity. As machines become smarter, gear hobbing will become even more efficient and precise.
Another trend is dry hobbing. It is oil-free. It is cost-saving and easy to clean up. Intelligent sensors on machines now monitor tool wear and gear quality. This saves from waste and retains high quality.
Little batch production with rapid changeovers is also becoming popular. This trend enables flexible production without compromising quality.
Gear hobs constitute a fundamental component of gear manufacturing. They cut up gear teeth that are tough and match perfectly. Sufficient selection of a hob and upkeep of the same ensure high-quality gears. As more improved machines and tools are available, gear hobbing will only become faster and more accurate. For gear workers, gear hobs are very crucial to comprehend.
Gear hobs might look simple, but they have a very important role. Their work towards the manufacturing of gears is instrumental in almost all industries like transport, heavy machines, or even domestic equipment.
How to find the best gear hob cutters manufacturers in India
There are a few things to remember when looking for gear hob cutter experts. Firstly, you want to find a manufacturer that has industrial experience. This ensures that they can provide you with the best quality products.
Another fundamental factor to consider is the price. You want to find a manufacturer that can offer you competitive prices. This will help you save money on your purchase.
Finally, you want to find a manufacturer located in India. It allows you to get the best price for your gear hob cutters.
When you keep these factors in mind, you should have no problem finding India’s best gear hob cutters manufacturers.
Some important considerations are to be taken care of. These are mentioned as below:
- Pricing element: Ensure that there is optimum pricing so that only a fair price is demanded for quality gear hobs. One must never forget to compare the prices of different manufactures to arrive at the right decision.
- Quality Standards: The manufacturer you consider choosing must follow all the quality standards so that there is no problem afterward. This consideration must not be ignored.
- Assistance Services: Look for the manufactures that go the extra mile in ensuring that everything is up to mark. The manufacturer who is known to provide assistance services must be your top priority.
FAQs
1. Why are gear hobs essential for smooth machine operation?
They produce precise teeth that ensure gears run quietly and efficiently in machines and vehicles.
2. How do single-thread and multi-thread hobs differ in production?
Single-thread hobs cut one tooth at a time for precision, while multi-thread hobs cut multiple teeth simultaneously for faster production.
3. What is the difference between straight and helical hobs?
Straight hobs cut spur gears, helical hobs cut angled teeth for smoother, quieter gear motion.
4. Why are involute gear hobs widely used?
They replicate curved tooth profiles, allowing gears to roll smoothly and distribute load evenly.
5. How are worm gear hobs applied in tight spaces?
They produce worm wheels for high-torque applications where space is limited, such as lifts and conveyors.
6. What trends are shaping the future of gear hobbing? CNC control, dry hobbing, smart sensors, rapid changeovers, and improved coatings for faster, more precise production.
