Master Gear

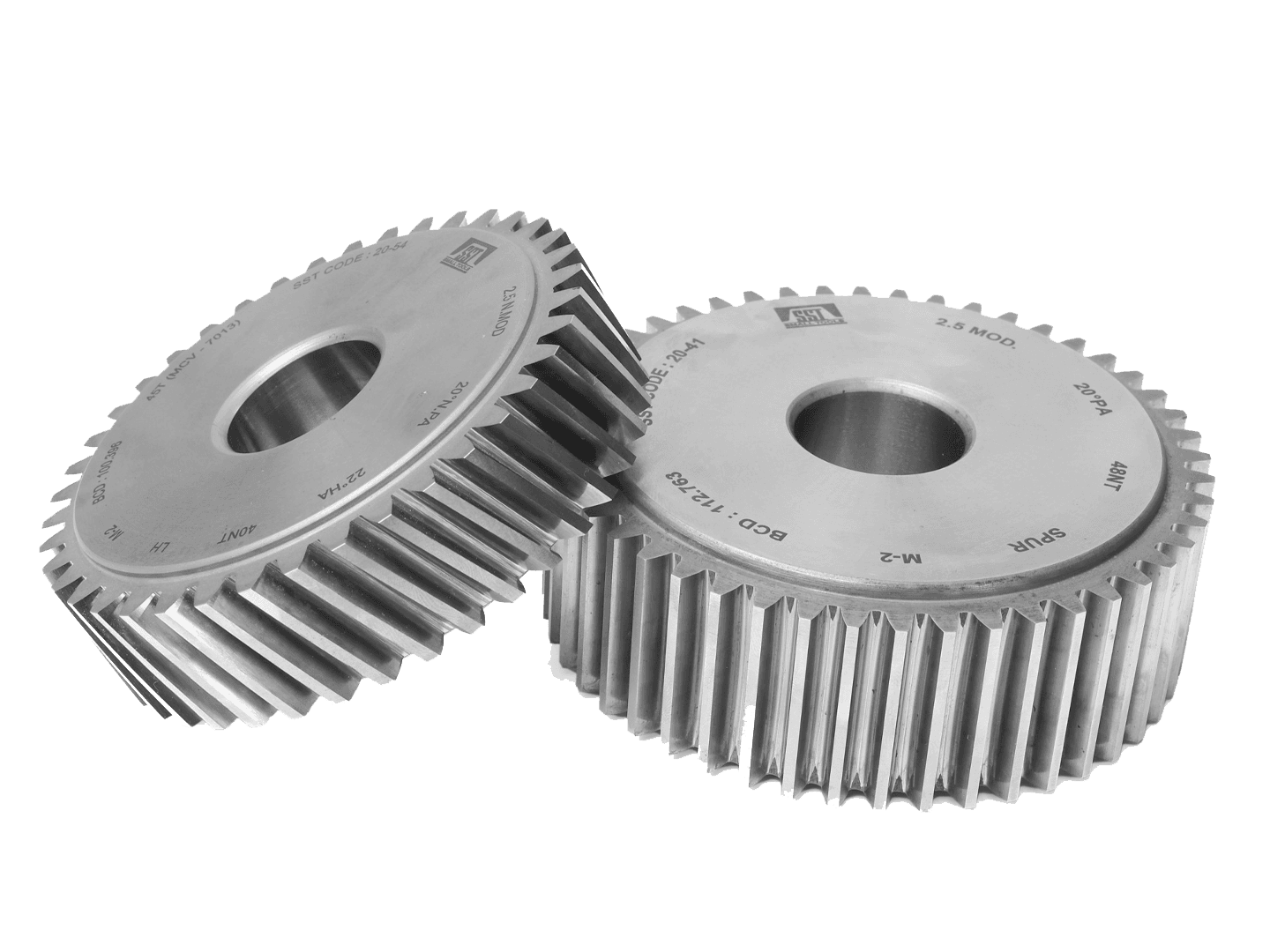

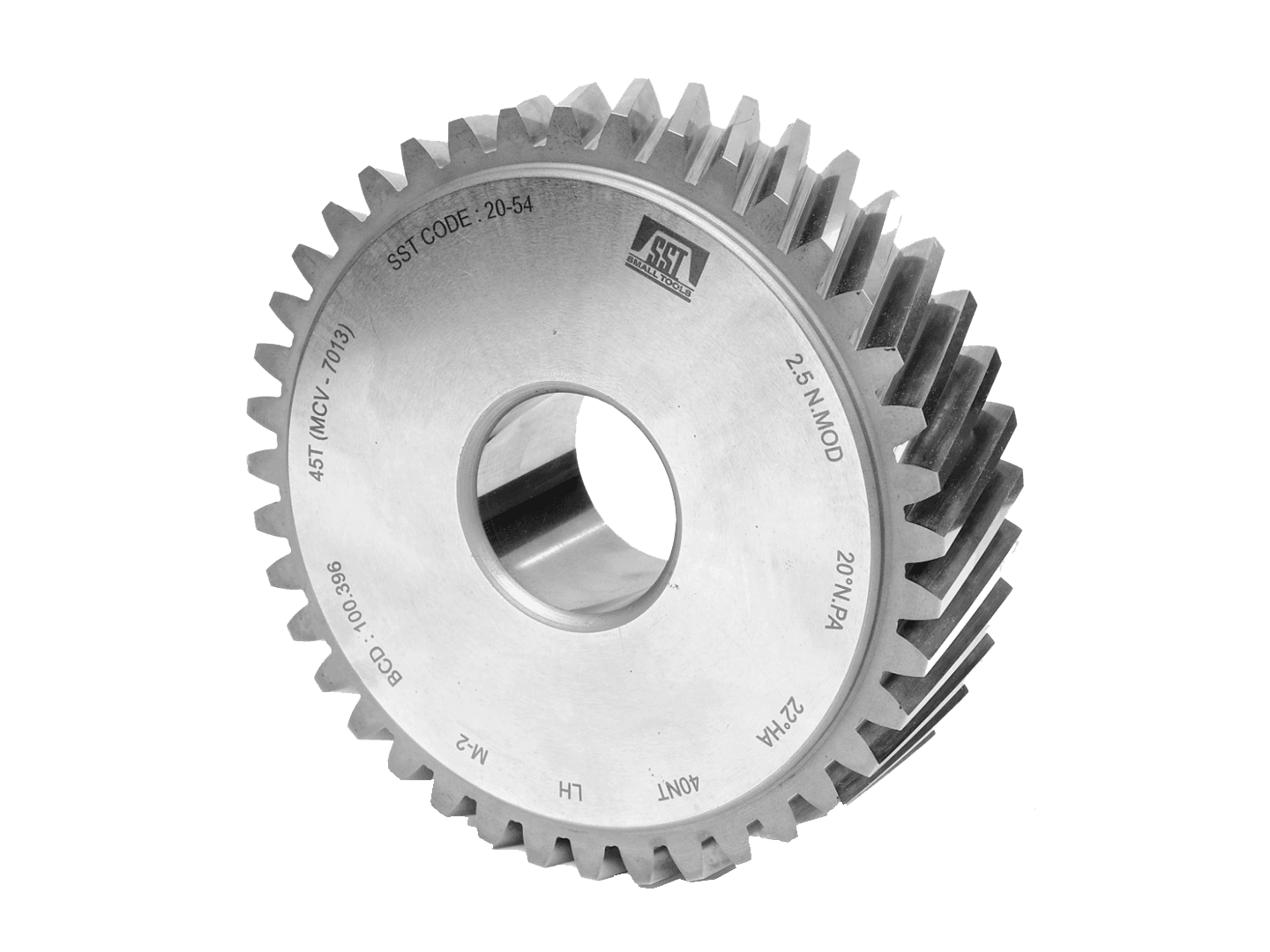

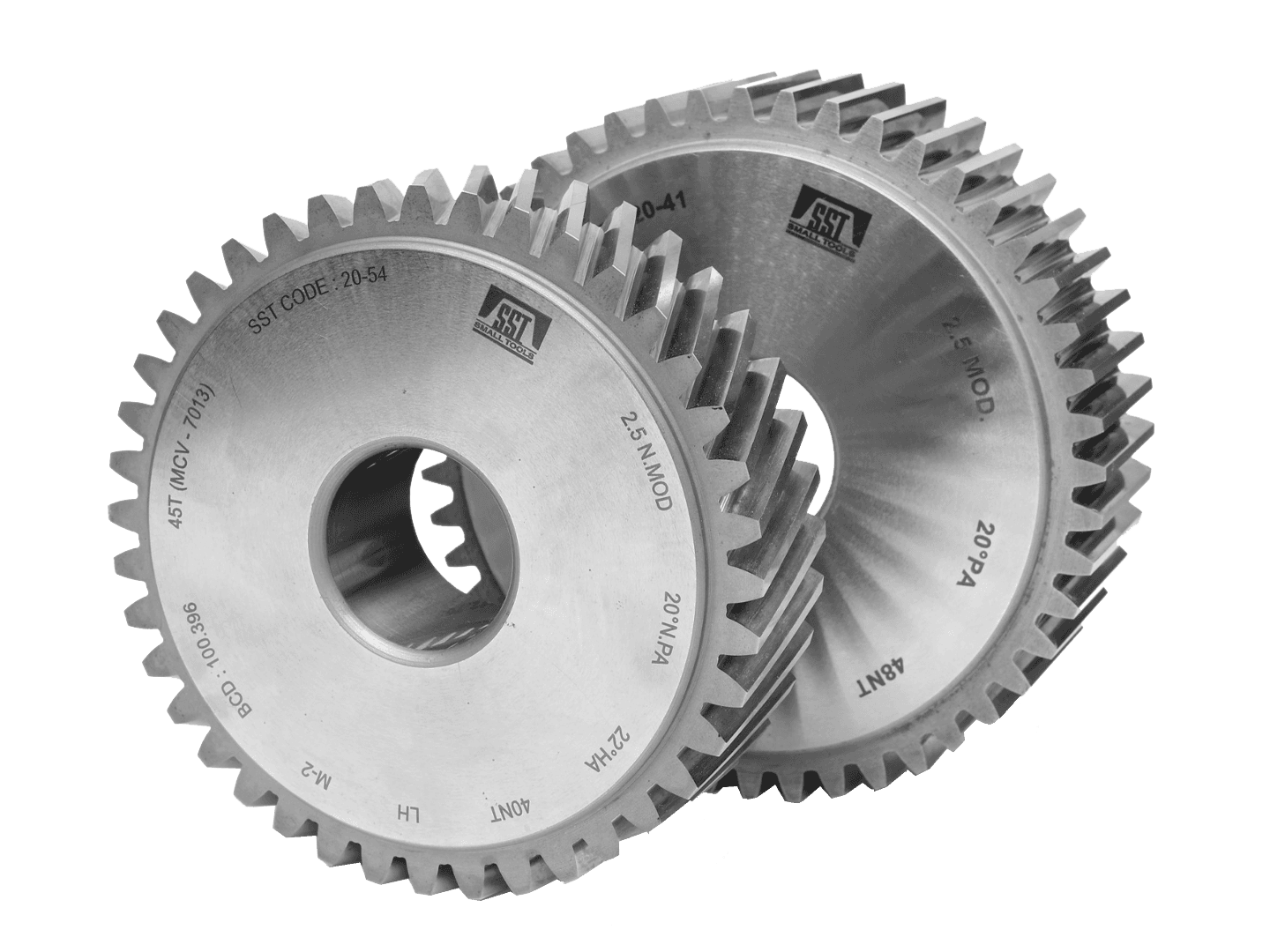

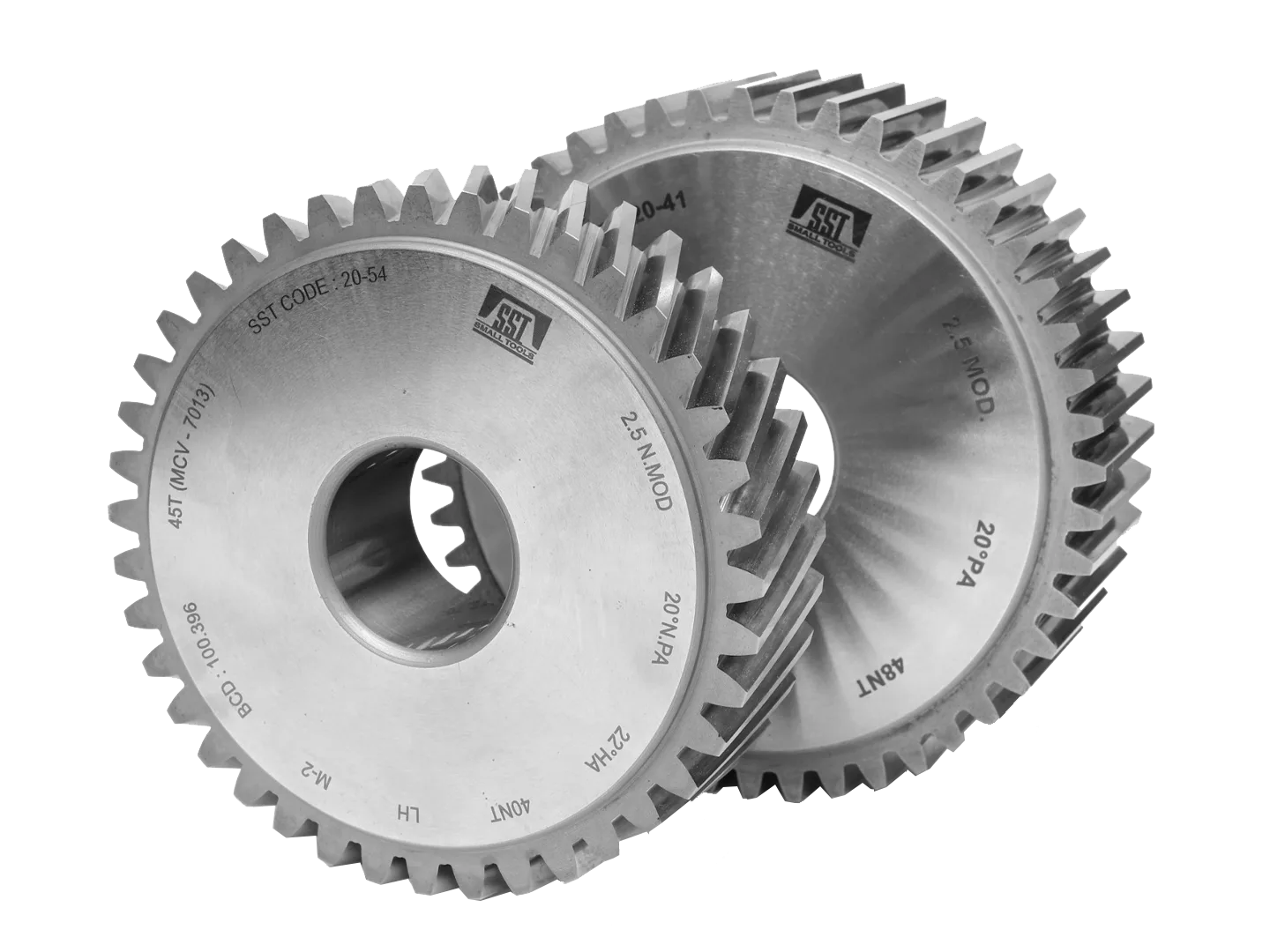

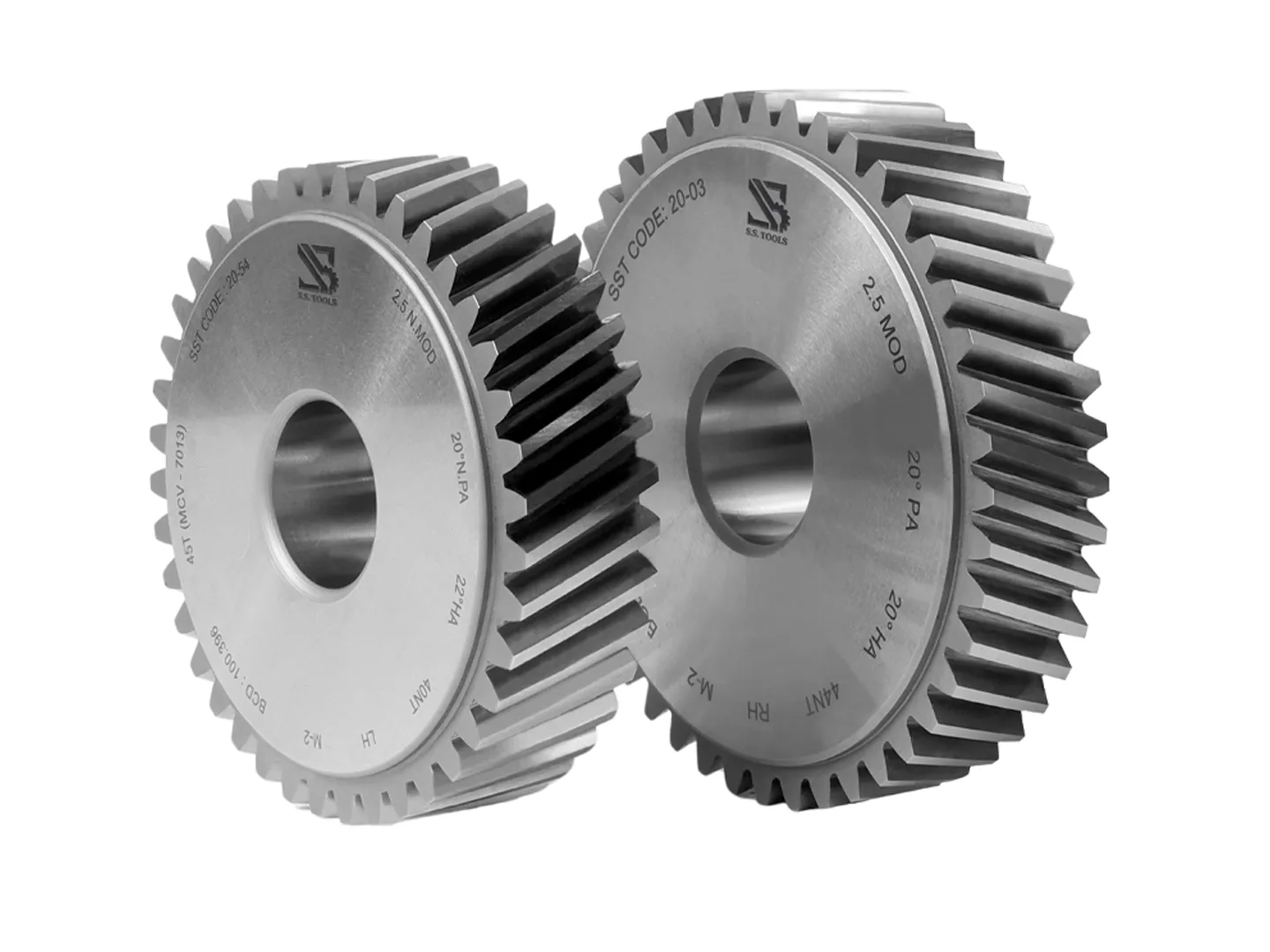

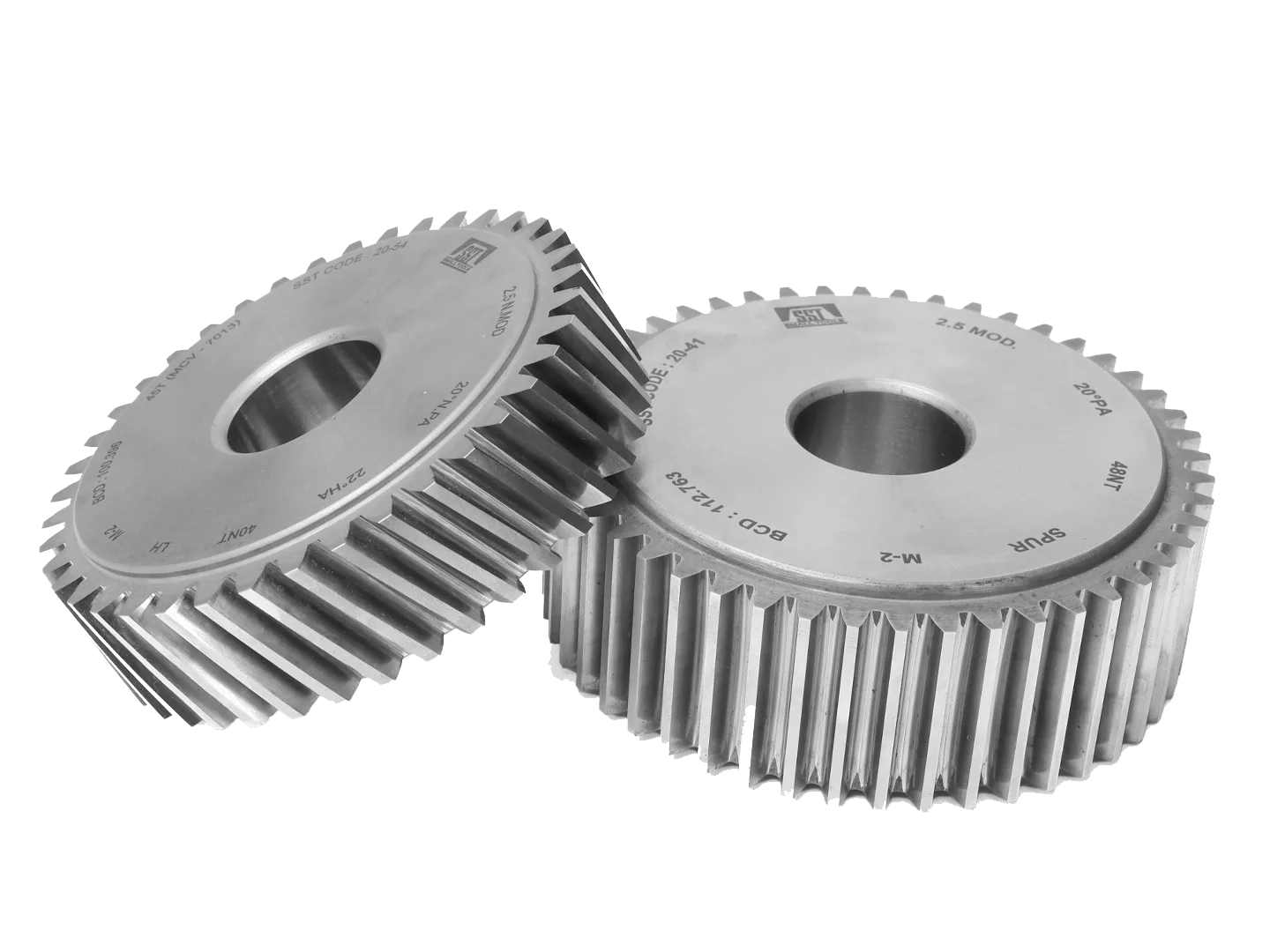

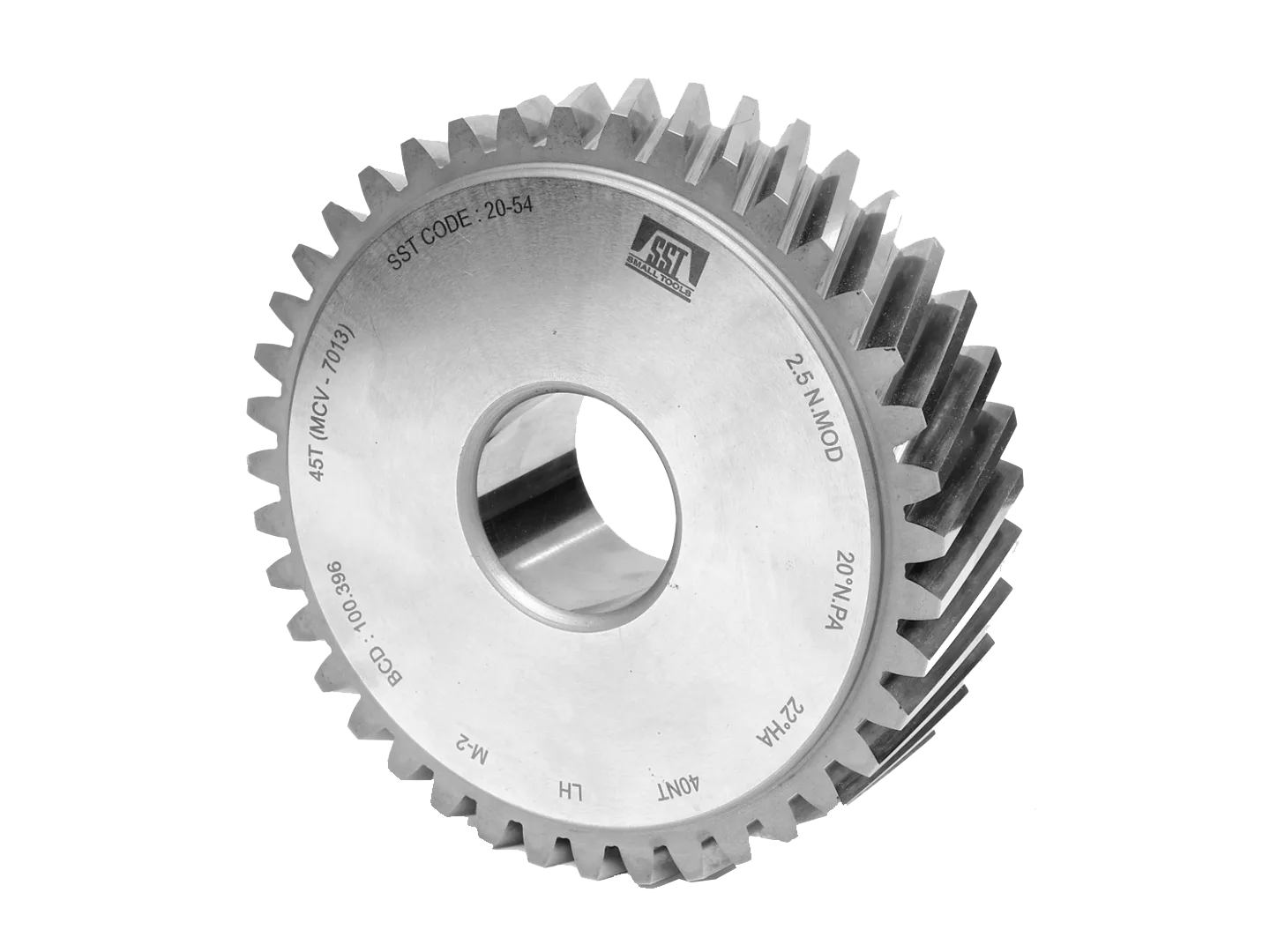

Spur and Helical Master Gears are designed and produced as per customer requirements for composite double or single profile (flank) checking of work gears. Master gears are manufactured using latest design software and process-controlled equipment, ensuring the longest possible tool life.

Module (DP) Range:           1 – 6 Mod. (DP 25.4 – 4)

Diameter Range:                 50 – 150 mm

Maximum Width:                50 mm

Accuracy:                              Certified class IV DIN 3962.

Materials:                              Conventional / PM High Speed Steels are available including:                                                                                                                                                                                                                                                                              M2 / M3/ ASP 2023
