Introduction of rack milling cutters
A good set of gear begins with the right tools, and rack milling cutter is one of the tools that stands out among others. With its high degree of precision, the rack milling cutter is the dream tool for many machines, whether it be cars, aeroplanes, or even the machines we use in our daily lives. Their role might be behind the scenes, but without them, gear-driven motion wouldn’t feel as seamless as it does today.
Importance in rack milling cutters manufacturing
What makes rack milling cutters crucial to manufacturing is their capacity to impart accuracy on a large scale. One mistake in a gear tooth may interfere with performance, however, these cutters make all the teeth even, consistent and prepared to withstand pressure. They assist manufacturers in designing racks that decrease the noise level, enhance efficiency, and prolong the lifespan of gear systems.

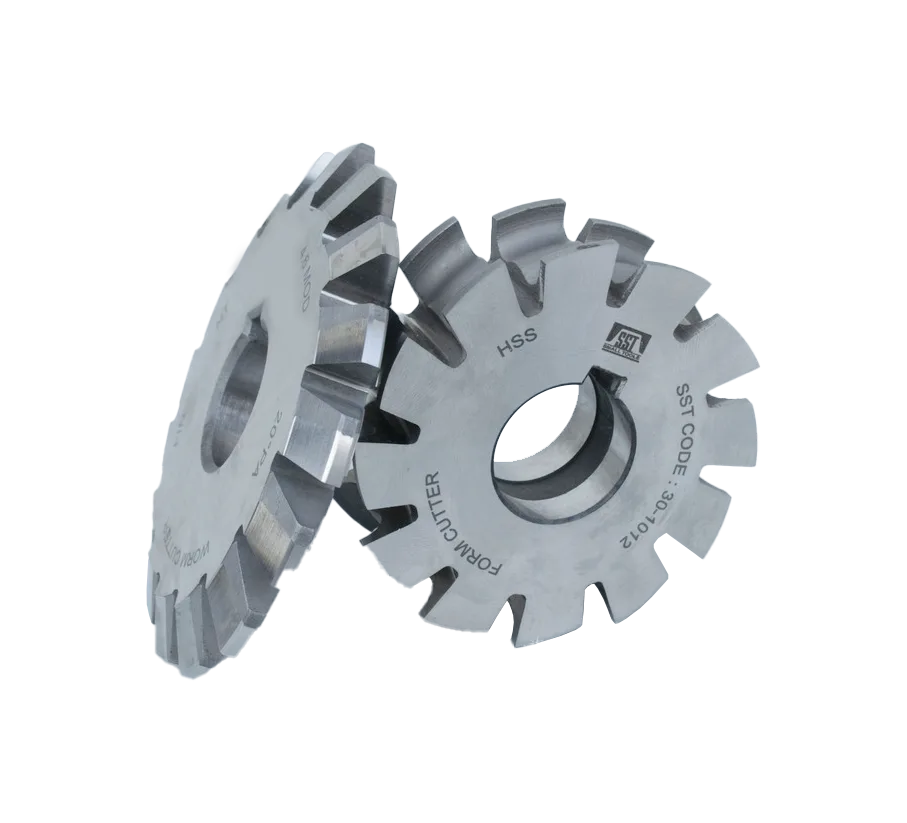

What is Rack Milling Cutter?
Rack milling cutters are used to shape racks, and are straight gear components used with a pinion to provide movement. The cutter is shaped as a reflection of the gear teeth, enabling the cutting of the same tooth shape into the rack in an accurate manner along the length of the rack. In doing so, it produces teeth just the right shape to mesh with gears without friction, giving comfortable motion and reliable performance in such applications as steering systems and heavy equipment.
How Rack Milling Cutters Work
Rack milling is a straightforward but efficient process. The cutter turns as it sweeps across the rack blank, and teeth are cut down until teeth occur. Every pass produces a regular profile, and when done under CNC, the accuracy is excellent. The feed rate, cutting rate, and alignment all contribute to the development of teeth that do not only perform to the design specification but also provide quality service.
Types of Rack Milling Cutters
There are various types of rack milling cutters, each applied in the creation of a different gear:
- Straight rack milling cutters – They are the cutters that fit the best in the rack with straight teeth; these are mostly utilized in the linear drive systems.
- Involute rack milling cutters – Involute tooth forms which are common in gears deliver smooth and effective transmission with the help of these rack milling cutters.
- Single-form cutters– These cut one tooth at a time at excellent accuracy for special projects.
- Multi-form cutters – A machine that cuts two or more teeth with one pass, ideally where production is in high volumes.
- Profile-shifted cutters – Develop racks of altered profiles that increase carrying capacity and extend the working life of gears.
Such diverse cutters provide manufacturers with an opportunity to select those that suit their objectives, whether they are speed-oriented, accuracy-oriented or longevity-oriented or all together.
Gear Materials and Coatings
A rack milling cutter is sensitive to the type of material and coating used on it:
- High-speed steel (HSS): Cost-effective and good work-room for toughness; medium suited to general gear cutting.
- Carbide: This provides both wear and hardness that is suitable to continuous production and stronger materials.
- Coatings (TiN, TiAlN, AlCrN): Increase tool life and reduce heat as well as enhance efficiency.
- Powder metallurgy steels: Can provide strength and toughness to perform in tough gear applications.
Choosing the adequate combination guarantees stable cutting action, minimised wear and stable quality of batches.
Power Skiving Tool
Power skiving is another common modern gear manufacturing process alongside rack milling. It is a combination of shaping and hobbing processes used to manufacture gears in a relatively fast and accurate manner. The technique can be particularly useful with highly geometric gears; both for internal and external. With applications such as automotive transmission, power skiving can produce shorter production cycles and very precise results. Rack milling and power skiving may even be used together, as racks can be milled and then used to create gears by skiving.
Advantages of Using Rack Milling Cutters
The Rack milling cutters offer a number of benefits to gear manufacturing:
- Accuracy: They produce gear teeth in a precise manner to perform in a smooth manner.
- Flexibility: They are capable of shaping various rack profiles and size.
- Efficiency: Multi-form opportunities can be used to produce quickly, but at the cost of quality.
- Durability: Cutters are durable, especially with suitable material and coating applied on them.
- Compatibility: They are applicable in normal mode and CNC-driven modes.
Such advantages make rack milling cutters a consistent and long-term value option by manufacturers.
How to Choose the Right Rack Milling Cutter
The production and the requirements of the material determine the choice of rack milling cutter:
- Workpiece material: HSS may work with softer metals, although harder materials is better with carbide.
- Runnage volume: In big quantities, the carbide and the coated cutters may provide high speed and durability.
- Gear profile: It is the design of the rack that determines whether the best are straight, involute or profile-shifted cutters.
- The capability of the machines: Where a CNC machine can take on more complicated profiling, the simpler cutters will suit traditional milling applications.
- Surface finish requirements: Precision and good quality finishes have special coating and profiles.
Their alignment guarantees effective manufacturing of gear under reliable quality conditions.
Maintenance and Storage Tips
The right care will prolong the service life of rack milling cutters and provide the same results:
- Thoroughly wash after use to get rid of chips and any residue.
- Apply protective oil to prevent wear of the surface.
- Re-grind frequently to assure sharp edges and clean profiles are maintained.
- Carefully pack it in storage cases to avoid mishandling.
- Store in constant conditions to avoid wearing out of the tools.
Regular maintenance helps achieve superior performance and tool life.
Common Mistakes to Avoid
The most effective way to maximise the rack milling cutters is to ensure that one remains attentive to practices that compromise effectiveness:
- Application of an inappropriate cutter with regard to the material used in the workpiece.
- Operation on inappropriate speeds and feeds.
- Missing sharpening timetables.
- Aligning the cutter with a rack blank in an incorrect manner.
- Not storing cutters under protection.
Future Trends in Rack Milling Cutters
The production of gears keeps increasing, and the rack milling cutters are keeping pace. Future trends that are shaping them are:
Hybrid machining: The hybrid combination of rack machining with hobbing and skiving allows faster and more versatile production.
High tech coatings: Wet coatings using Nano-layers that have even higher wear resistance.
Automation: Implications of smart and robot principles on predictive maintenance of tools.
Sustainability: Emphasis on efficiency in energy consumption and the materials used to make the tools recyclable.
Customization: Trend toward cutters tailored to specific applications in industries such as aerospace and electric vehicles.
These trends suggest an even bigger reliance on rack milling cutters to manufacture gears in the future, more efficient and flexible than ever before.
Final Word
In gear manufacturing, rack milling cutters have proved their worth over time, fashioning racks that provide movement in a myriad of machines. With careful selection, proper maintenance, and awareness of future innovations, manufacturers can achieve high-quality gear production while reducing costs and improving performance.
